Genuine OEM Grasshopper Lawn Mower Parts

Genuine OEM Grasshopper® Mower Parts Diagrams

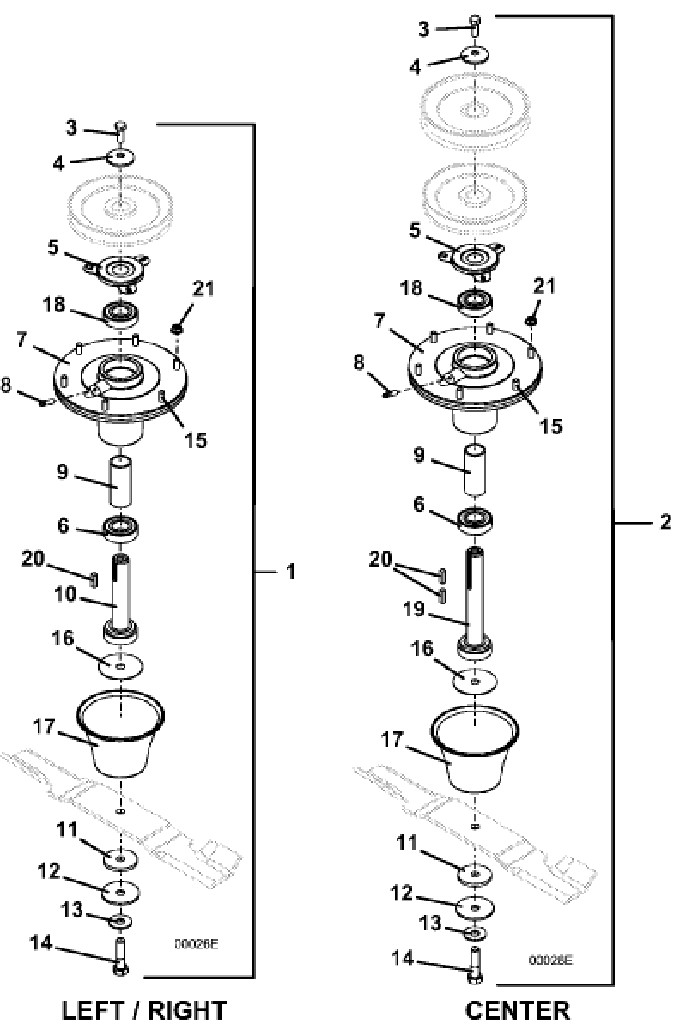

322D • Blade Spindle Assembly M161

2008

Blade Spindle M161

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

Spindle Assembly

623763

2

Center M1 Blade Spindle Assembly (includes items 3-9, 11-18, and 20)

623780

3

Hex Bolt

243331

4

Cupped Washer

257041

5

Shield Bearing

721167

6

Single Seal Ball Bearing

110082

7

5.0 Machined Spindle Housing

320550

8

Zerk Grease Fitting

280745

9

Deep Spindle Bearing Spacer

903643

10

5.75 Spindle Shaft Assembly

604775

11

Fiber Washer

421200

12

Washer

257061

13

Blade Spindle Hardened Washer

257057

14

Grade 8 Flange Hex Bolt

243583

15

Round Head Ribbed Neck Bolt

247141

16

Washer

772061

17

Deflector Cone

423680

18

25mm Double Metal Seal Ball Bearing

110080

19

M1 Spindle Shaft Assembly

604773

20

Square Key

281582

21

Whiz Nut

253035
