Genuine OEM Grasshopper Lawn Mower Parts

Genuine OEM Grasshopper® Mower Parts Diagrams

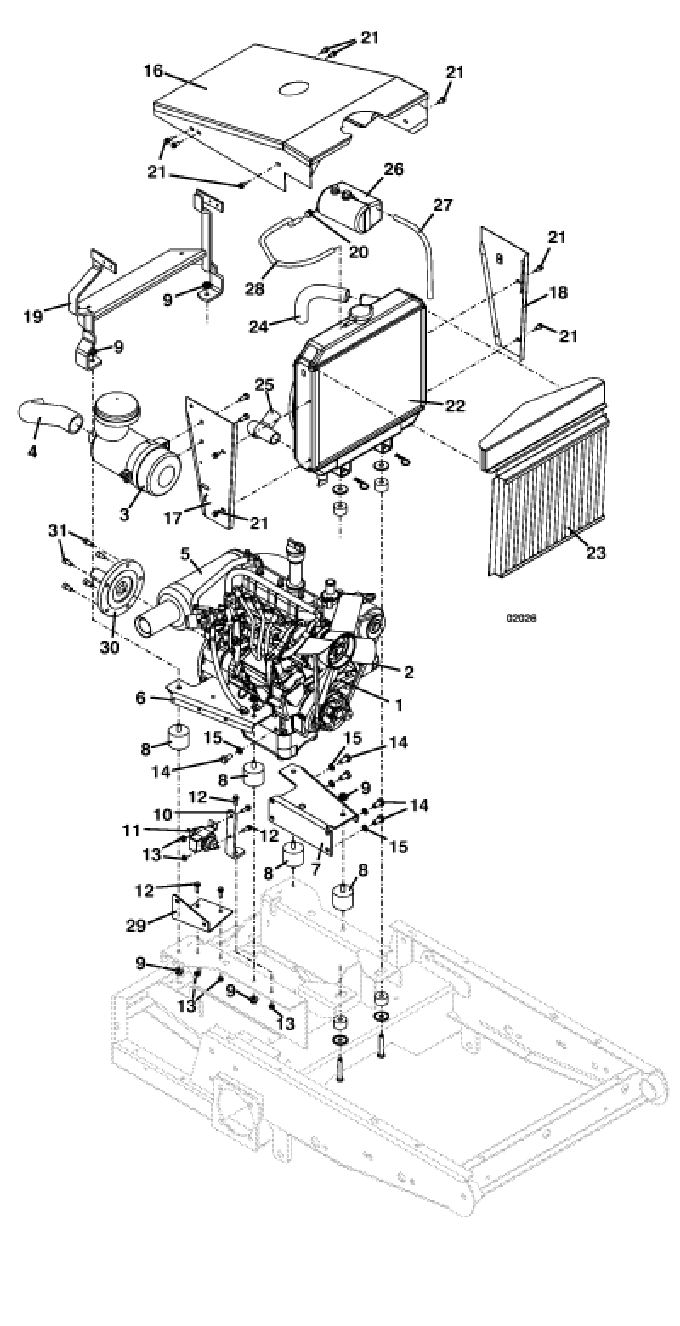

325 • Engine Assembly

2003

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

Kubota Gas Engine

100171

2

Kubota Oil Filter

100800

3

Kubota Air Filter

100940

4

Intake Air Hose

424519

5

Muffler & Gasket Assembly

603590

-

Kubota Flange Exhaust Gasket

101040

6

right Wide Engine Mount

643322

7

left Wide Engine Mount

643323

8

Vibration Isolator

424078

9

Whiz Nut .375-16

253043

10

Fuel Pump Mount

732883

11

Electric Fuel Pump

101510

12

Hex Whiz Bolt .25-20 x .75

253175

13

Whiz Nut .250-20

253025

14

Hex Bolt

271120

15

Lock Washer

275580

16

700 Hood with Decals

693300

17

right Grille Support

643799

18

left Grille Support

643800

19

300S Rear Hood Support

644762

20

Spring Hose Clamp

280260

21

Hex Whiz Bolt .25-20 x .500

253173

22

Kubota Radiator

101610

23

Radiator with Guard

644663

24

Upper Radiator Hose

101054

25

Lower Radiator Hose

101055

26

Expansion Tank

422012

27

Clear Vent Hose

821748

28

Hose

821749

29

325 Coil Mount

754097

30

Clutch Stub Shaft

824637

31

M8 Socket Head Screw

270075
