Genuine OEM Grasshopper Lawn Mower Parts

Genuine OEM Grasshopper® Mower Parts Diagrams

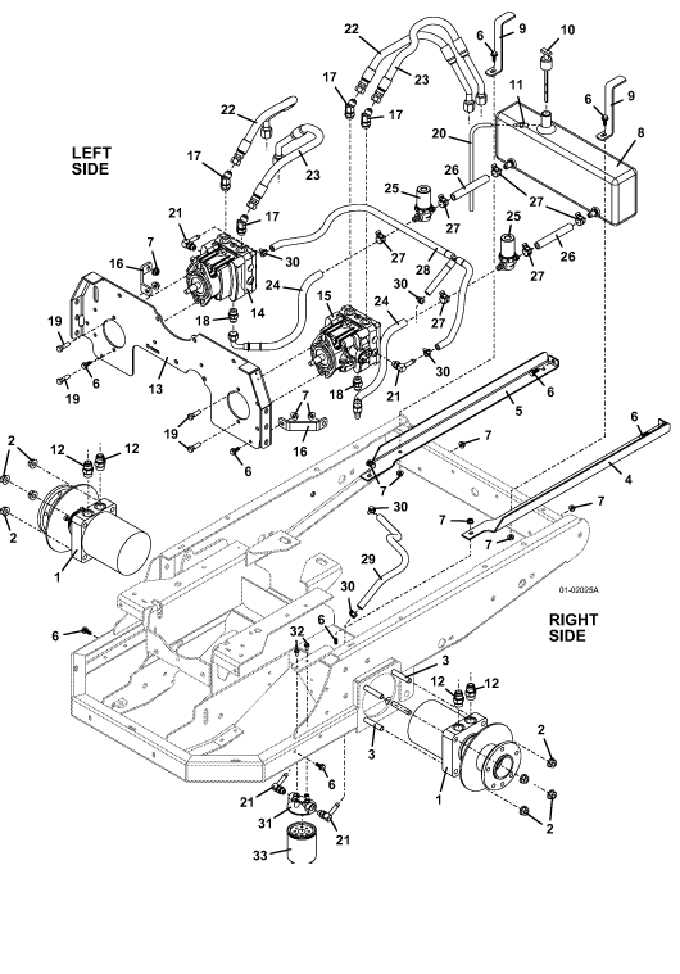

325 • Reservoir and Hose Assembly

2003

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Return to 325 Index Return to Top

Item #

Description

Part Number

1

Wheel Motor with Hub

603602

2

Flanged Nut Spiral Lock

253067

3

Socket Head Screw

259640

-

Internal Star Washer

257430

4

300S Tank Rail - right

754068

5

300S Tank Rail - left

754069

6

Hex Flange Whiz Bolt

253192

7

Whiz Nut

253035

8

Oil Reservoir Assembly - M1 325 / 400

603606

-

Grommet

101875

-

Grommet

101880

-

Straight Fitting

360058

-

90 degree Fitting

363638

9

Oil Tank Strap

732557

10

M1 Oil Reservoir Dipstick

100728

11

Straight Barbed Fitting

363826

12

Adapter Fitting

360069

-

O Ring

126529

-

O Ring

126537

13

Pump Plate

644619

14

Left Hydro Pump

391462

15

Right Hydro Pump

391463

16

Pump Plate Rein Strap

732882

17

Adapter Fitting

360064

-

O Ring

126535

18

Steel O Ring Boss Fitting

363832

-

O Ring

126535

19

Hex Bolt

243335

20

Clear Vent Hose

821724

21

Adapter

360056

22

Hose Assembly

424375

23

Hose Assembly

424377

24

Hose Assembly

424321

25

In-Line Strainer

366553

26

Hydraulic Hose

821793

27

Spring Hose Clamp

280265

28

Hose Assembly

424317

29

Hydraulic Hose

821787

30

Spring Hose Clamp

280263

31

Filter Base - M1 Series

101024

32

Hex Whiz Bolt

253173

33

High-Efficiency Transaxle Oil Filter

100855
