Genuine OEM Grasshopper Lawn Mower Parts

Genuine OEM Grasshopper® Mower Parts Diagrams

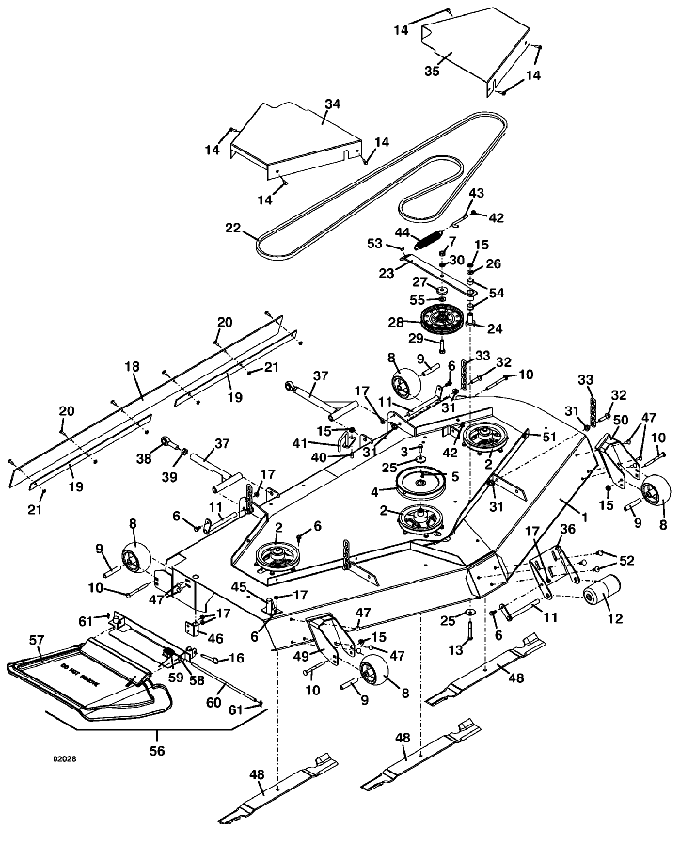

325A • Deck Assembly - M172

2004

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

M172/07 Deck Weldment

644161

2

Sheave

414745

3

Hex Bolt

243331

4

Sheave

415894

5

Square Key

281582

6

Hex Flange Whiz Bolt .312-18 x .75

253192

7

Nut .500-13

254470

8

Anti-Scalp Wheel 5 x 2.75

484230

9

Tube Bearing

942137

10

Carriage Bolt

247310

11

Roller Lock Pin

644512

12

2 Piece Center Roller Assembly

603725

13

Hex Bolt .375-16 x 3

243365

14

Hex Whiz Bolt .25-20 x .75

253175

15

Whiz Nut .375-16

253043

16

Hitch Pin

260400

17

Whiz Nut

253035

18

M1 72 Deck Flap

424206

19

Deflector Strap M1 72

774223

20

Truss Whiz Bolt

253177

21

Whiz Nut

253025

22

Belt

382098

23

M1 72 Idler Arm Assembly

824494

24

Pedestal Bearing

121650

25

Cupped Washer

257041

26

Washer

257040

27

Retainer Washer

883804

28

Idler

393250

29

Hex Bolt

243580

30

Lock Washer

257432

31

Whiz Nut

253058

32

Hex Bolt GR 8

243458

33

Chain - 5 Links M1

820331

34

right Belt Shield M1 72

723330

35

left Belt Shield M1 72

723331

36

Roller Mount M1 72

755071

37

Radius Arm Assembly - M1 300

604676

38

Rod End

265665

39

Nut

254493

40

Flange Whiz Bolt

253203

41

M1 Deck Belt Guide

644086

42

Nut

254450

43

Idler Adjustment J Bolt

730391

44

Extension Spring

283848

45

Clevis Shaft

643235

46

Pivot Mount

643632

47

Carriage Bolt

247130

48

Medium Lift Blade - 25"

320250

-

Contour Blade - 25"

320252

-

High Lift Notch Blade - 25"

320253

-

Extreme Hi-Lift Blade - 25"

320254

49

right Anti-Scalp Roller Mount

643842

50

left Anti-Scalp Roller Mount

643695

51

Speed Nut

254431

52

Carriage Bolt

247253

53

Nylon Bearing

422520

54

Oilite Bearing

121756

55

Washer

257062

56

Discharge Flex Shield Assembly

604749

57

Discharge Flex Shield

422042

58

Discharge Flex Shield Mount

644767

59

Torsion Spring

284406

60

Discharge Flex Shield Pin

780650

61

Cotter Ring

260608
