Genuine OEM Grasshopper Lawn Mower Parts

Genuine OEM Grasshopper® Mower Parts Diagrams

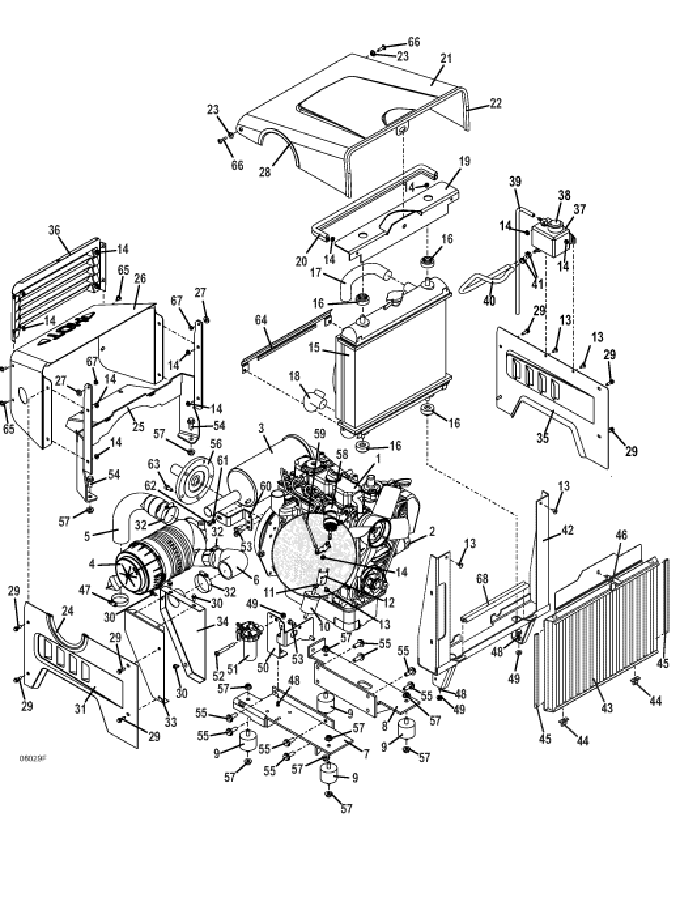

325D • Engine Assembly

2014

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

Kubota Diesel Engine

100179

2

Kubota Oil Filter

100800

3

Kubota Muffler

101235

-

Exhaust Flange Gasket Kubota

101040

4

Air Cleaner Nelson 90 Deg

100207

-

Heavy Duty Outer Air Filter

100936

-

Heavy Duty Inner Air Filter

100937

5

Breather Hose - Manifold

424526

6

Breather Hose - Inlet

424520

7

Right Engine Mount 902D

644286

8

Left Engine Mount 902D

644287

9

Vibration Isolator

424078

10

Kubota Fuel Prefilter

101005

11

Hose Spring Clamp

280261

12

Extension Linkage

723063

13

Truss Whiz Bolt

253176

14

Whiz Nut

253025

15

Kubota Radiator

101612

16

Radiator Mount Isolator Bushing

101080

17

Upper Radiator Hose

101058

18

Lower Radiator Hose

101059

19

Radiator Channel Clamp

729327

20

Hood Bulb Seal

822518

21

Hood W/A Engine 725D/932

644438

22

Front Hood Trim

822639

23

Step Bushing

422508

24

Air Cleaner Seal Trim

822513

25

Hood Support

644854

26

Rear Hood Box Panel

722919

27

Hood Hinge Spacer

901324

28

Trim

822632

29

Hex Whiz Bolt

253175

30

Hex Whiz Bolt

253173

31

Right Hood Side 725DT6

722920

32

Hose Clamp - Screw Type

280305

33

Air Intake Box Mount

644066

34

Air Intake Box

644059

35

Left Hood Side 725DT6

762521

36

Rear Hood Grill

645270

37

Expansion Tank - Water

421980

38

Reservoir Cap with Gasket

421990

39

Clear Vent Hose

821748

40

Hose

821749

41

Spring Hose Clamp

280260

42

Lower Radiator Mount - 902

644658

43

Grille with Guard Assembly

604382

44

Rear Belt Shield Isolator

422090

45

Radiator Grille Trim

822636

46

Swell Latch Assembly

604805

47

Hose Clamp - Screw Type

280303

48

Flanged Hex Whiz Bolt

253192

49

Whiz Nut

253035

50

Fuel Filter Mount

754198

51

Kubota Fuel Filter

101000

52

Whiz Bolt

253197

53

Hex Bolt FL W/SER

271021

54

Flanged Whiz Bolt

253203

55

Hex Bolt

271121

56

Clutch Stub Shaft

824637

57

Whiz Nut

253043

58

Fuel Valve Solenoid

101046

59

Manual Stop Lever Extension

246880

-

Red Vinyl Cap

422092

60

Muffler Support Strap

732604

61

Lock Washer

257402

62

Hex Nut

274145

63

Socket Head Screw M8

270075

64

Fan Shield

721006

65

Bolt

253180

66

Bolt

253181

67

Nylon Insert Nut

253440

68

Lower Radiator Seal

822507
