Genuine OEM Grasshopper Lawn Mower Parts

Genuine OEM Grasshopper® Mower Parts Diagrams

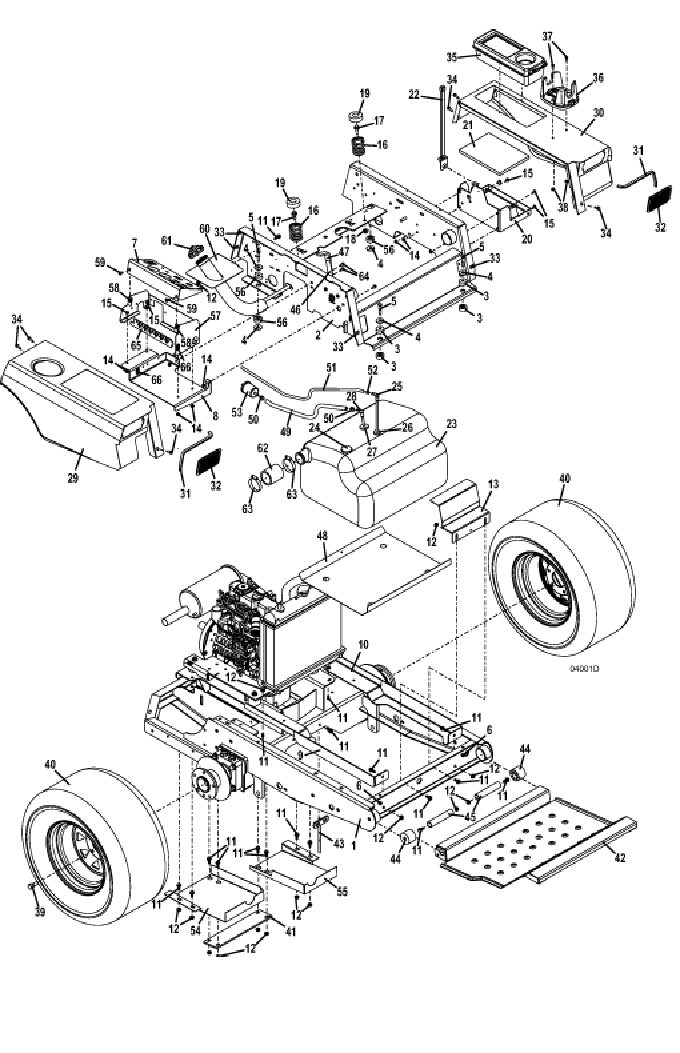

325D • Tractor Assembly

2014

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

Lower Frame 322D

644296

2

Upper Frame - 300/400

644434

3

Step Bushing

257037

4

Washer

774020

5

Hex Bolt

243220

6

Nylon Insert Nut

253450

7

Console for Liquid Cooled Diesel with Decal

693112

8

Console Mount M1

645052

9

Right Tank Rail 300/400

645802

10

Left Tank Rail 300/400

645803

11

Hex Flange Whiz Bolt

253192

12

Whiz Nut

253035

13

Front Tank Bracket 300/400

723042

14

Whiz Nut

253025

15

Truss Whiz Bolt

253176

16

Compression Spring

283516

17

Whiz Flange Bolt

253203

18

Whiz Nut .375-16

253043

19

Seat Spring Cap

422127

20

Battery Box with Strap

644108

21

Battery Tray Pad

427275

22

Battery Hold-down Strap

604785

23

Diesel Tank Assembly M1

605800

24

In-tank Fuel Guage

141142

-

Grommet

424275

25

Fuel Tube

363929

26

Fuel Tube Bushing

101875

27

Diesel Draw Tube Bushing

101876

28

Fuel Tube

363923

29

Right Fender With Decals 300

693224

30

Left Fender With Decals 300

693225

31

Trim

822632

32

Work Lamp Hole Plug

422079

33

Speed Nut

254431

34

Hex Whiz Bolt

253175

35

Tool Box

422040

36

Cup Holder

150225

37

Cap Screw

259030

38

Nut

254436

39

Lug Bolt

248565

40

Wheel and Tire Assembly Turf 24 x 12 x 12

483965

-

Turf Tire 24 x 12 x 12

482486

-

Bar Tread Tire Only 24 x 12 x 12

482487

-

Wheel Only 12 x 8.5 x 4.25

483440

-

Wheel &Tire Bar Tread (right) 24 x 12 x 12

483968

-

Wheel &Tire Bar Tread (left) 24 x 12 x 12

483969

41

Belt Guard Strap

783277

42

M1 On Frame Footrest

644256

43

M1 Deck Belt Guide

645005

44

Seat Isolator

424095

45

Seat Pin Hinge

644618

46

Throttle Assembly 322D/722D

603858

-

Throttle Control Cable Assembly

323656

-

Throttle Stop Lever

722009

-

Heavy Duty Throttle Stop

722736

47

Handle Grip

422150

48

M1 Fuel Tank Shield

722949

49

Fuel Line Hose 300S

821718

50

Spring Hose Clamp

280261

51

Fuel Return Hose 430D

821744

52

Spring Hose Clamp

280257

53

Kubota Fuel Prefilter

101005

54

322 Right Hydro Debris Shield

723396

55

322 Left Hydro Debris Shield

723397

56

Step Bushing

257038

57

Console Frame Mount 300/400

751036

58

Nut Plastic Retainer

254432

59

Bolt

253180

60

Fuel Filler 300/400

644887

61

Screw-on Diesel Fuel Cap

100211

62

Fuel Tank Filler Hose

422027

63

Screw Type Hose Clamp

280305

64

Hex Whiz Bolt

253173

65

Relay Mount

775103

66

Grommet

424216

67

325D Decal Set

604266

Return to 325D 2014 Index Return to Top
