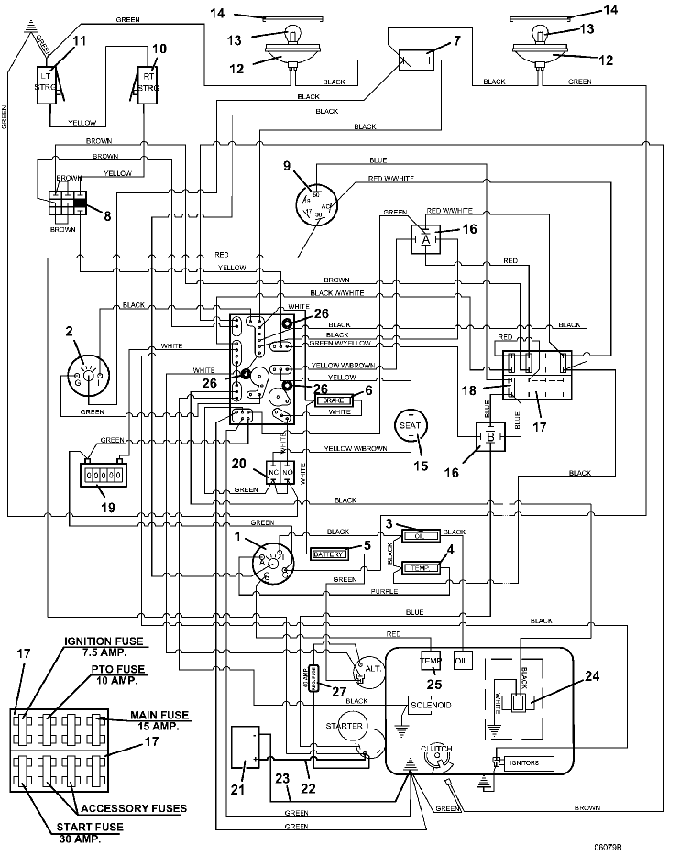

329 • Electrical Wiring

2009

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

Electric Zoned Temperature Gauge

141160

-

Gauge Light

141210

2

Voltmeter Gauge

141200

-

Gauge Light

141210

3

Oil Indicator Light

182327

4

Temperature Indicator Light

182328

5

Battery Indicator Light

182325

6

Brake Indicator Light

182326

7

Light Switch

184179

8

Push / Pull Switch

183925

9

Kubota Sealed Key Switch

183827

10

Lever Switch

183860

-

Right Steering Switch Mount

720160

11

Lever Switch

183860

-

Left Steering Switch Mount

720161

12

Worklamp (Flood)

182253

13

Light Bulb for Worklamp

182005

14

Snap-Mount Bezel for Worklamp

182251

15

Twist-In Seat Switch

183871

16

12 volt DC Relay

184272

-

6mm Type 1 Push-On

184570

-

.250 Faston Terminal

184581

-

5-Way Female Connector

184926

17

Fuse Block

181722

-

1 Wire Fuse Clip

184458

-

2 Wire Fuse Clip

184460

-

Double Wire Fuse Clip

184472

18

Auto ATC 30 Amp Fuse

181470

-

Auto ATC 15 Amp Fuse

181465

-

Auto ATC 10 Amp Fuse

181462

-

Auto ATC 7.5 Amp Fuse

181460

19

Snap-in Hour Meter

141551

20

Brake Interlock Switch

183894

21

12 volt Side Post Wet Battery

180130

-

12 Volt Side Post Dry Battery

180131

-

Hex Bolt

243309

-

Battery Box Assembly with Strap

603104

-

Battery Hold Down Strap

604785

22

Red 42" Battery Cable

180340

-

Alternator Terminal Red Boot

425215

-

Starter Terminal Boot

425219

-

Battery Terminal Boot

425223

23

Black 39" Battery Cable

180295

24

Electric Fuel Pump

101510

25

Temperature Sender

141222

26

PC Board Support Spacer

423690

27

Inline Regulator Fuse Holder

604888

-

Auto ATC 40 Amp Fuse

181475

28

400's Gas Wiring Assembly

605927

29

Console Decal Pic

161124
