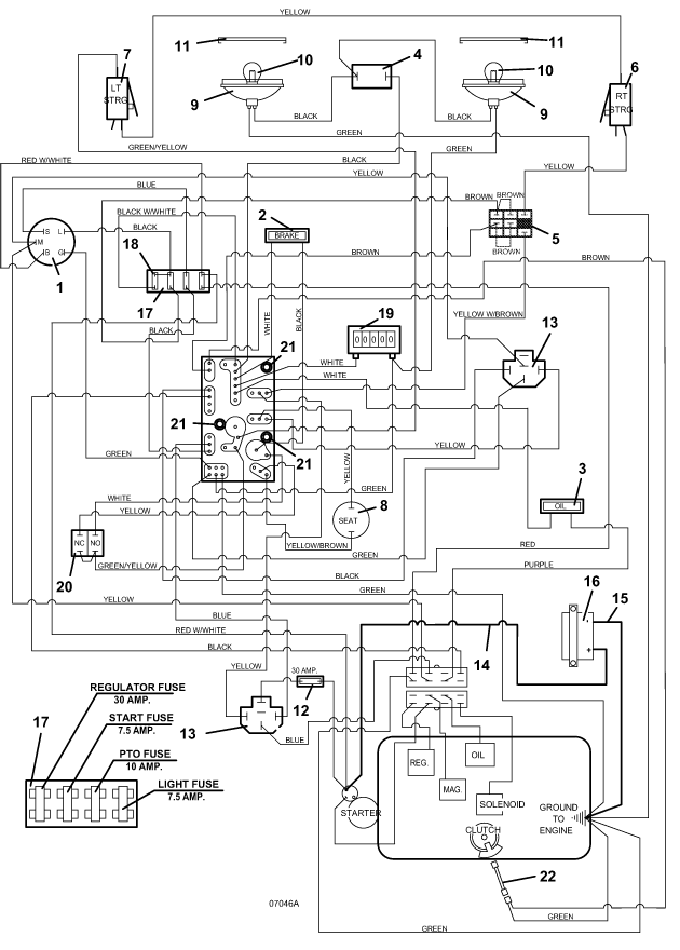

329B • Electrical Wiring

2012

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

Key Switch B & S/Kohler

183806

-

Key Ignition w/Cover

101101

-

Nut

254498

-

Panel Plastic

422078

2

Brake Light Indicator

182326

3

Oil Indicator Light

182327

4

Rocker Switch

184179

5

Push/Pull Switch

183925

6

Lever Switch

183860

-

Right Steering Switch Mount

720160

7

Lever Switch

183860

-

Left Steering Switch Mount

720161

8

Twist-In Seat Switch

183871

9

Flood Worklamp

182253

10

Worklamp Light Bulb

182005

11

Snap Mount Worklamp Bezel

182251

12

In-Line Auto Fuse Holder

181735

-

Auto Fuse ATC - 30

181470

13

12 volt DC Relay w/MT

184271

-

6mm Type 1 Push-On

184570

-

.250 Faston Terminal

184581

-

5-Way Female Connector

184926

14

Battery Cable 42 inch Red

180340

-

Starter Terminal Boot

425219

-

Battery Terminal Boot

425223

15

Battery Cable 39 inch Black

180295

16

12 Volt Sidepost Wet Battery

180130

-

12 Volt Sidepost Dry Battery

180131

-

Battery Hold Down Strap

604785

17

Fuse Block

181722

-

1 Wire Fuse Clip

184458

-

2 Wire Fuse Clip

184460

-

Double Wire Fuse Clip

184472

18

Auto ATC 30 Amp Fuse

181470

-

Auto ATC 10 Amp Fuse

181462

-

Auto ATC 7.5 Amp Fuse

181460

19

Snap-in Hour Meter

141551

-

Fuel Level Gauge - Console Mount

141122

20

Brake Interlock Switch

183894

21

PC Board Support Spacer

423690

22

Clutch Pigtail -Modified

604431

23

2 Terminal Connector

184907

24

Wiring Assembly - 329B/335

605906
