Genuine OEM Grasshopper Lawn Mower Parts

Genuine OEM Grasshopper® Mower Parts Diagrams

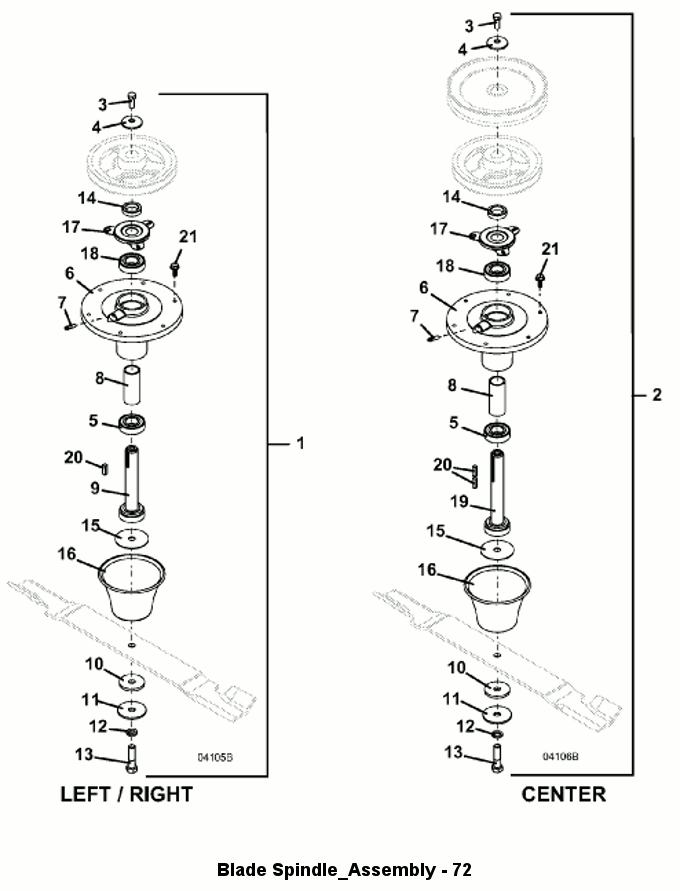

335B • Blade Spindle Assembly - M172

2007

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

Left & Right Spindle Assembly (includes items 3-19)

623764

2

Center M1 Blade Spindle Assembly, center (includes items 3-8 and 10-20)

623765

3

Hex Bolt

243331

4

Cupped Washer

257041

5

Ball Bearing

110082

6

Cast Spindle Housing Assembly

824151

7

Zerk Grease Fitting

280745

8

Deep Spindle Bearing Spacer

903643

9

Spindle Shaft Assembly 98S

604774

10

Fiber Washer

421200

11

Washer

257061

12

Lock Washer

257432

13

Hex Bolt

243583

14

Spacer

282607

15

Washer

772061

16

Deflector Cone

423680

17

Shield - Bearing

721167

18

Ball Bearing

110080

19

M1 Spindle Shaft Assembly

604773

20

Key Square

281582

21

Bolt Whiz Hex Flange

253192
