Genuine OEM Grasshopper Lawn Mower Parts

Genuine OEM Grasshopper® Mower Parts Diagrams

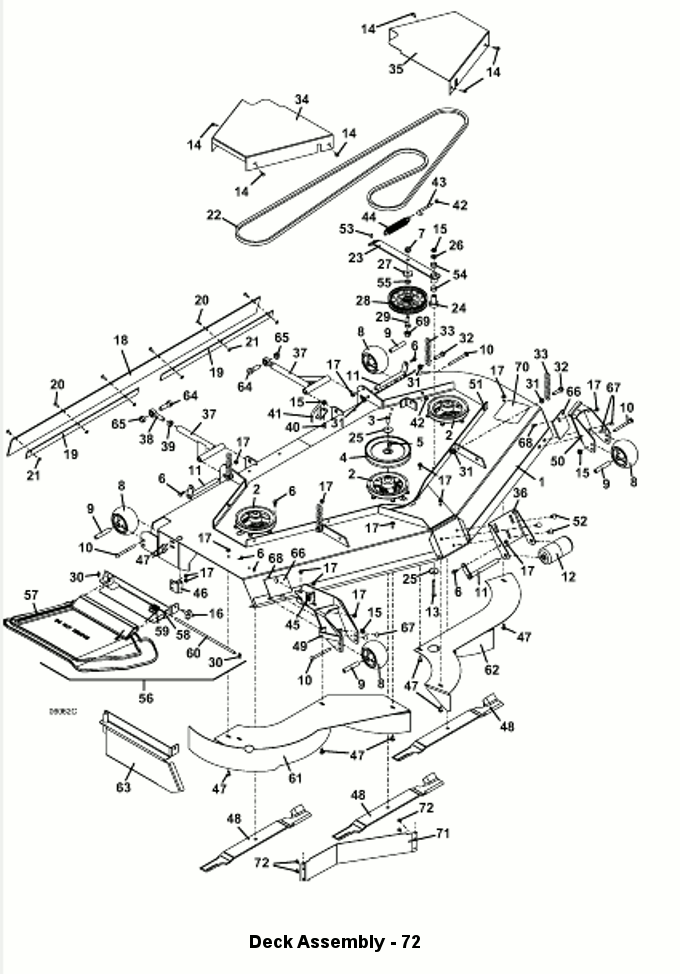

335B • Deck Assembly - M172

2010

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

M172 / 07 Deck Weldment

644161

2

Sheave

414745

3

Hex Bolt

243331

4

Sheave

415894

5

Square Key

281582

6

Bolt Whiz Hex Flange

253192

7

Flange Spiral Lock Nut

253067

8

Anti-Scalp Center Hub Wheel

484230

9

Bearing Tube

942137

10

Carriage Bolt

247310

11

Roller Lock Pin

644512

12

Roller Assembly - Center 2 Piece

603725

13

Hex Bolt

243365

14

Bolt Whiz Hex

253175

15

Whiz Nut

253043

16

Stud - 3 Prong HD - Deck 1.25 inch

252821

17

Whiz Nut

253035

18

M1 72 Deck Flap

424206

19

Deflector Strap

774337

20

Truss Whiz Bolt

253179

21

Whiz Nut

253025

22

Belt

382098

23

M1 72 Idler Arm

824494

24

Pedestal Bearing

121650

25

Cupped Washer

257041

26

Washer

257040

27

Retainer Washer

883804

28

Idler

393250

29

Hex Bolt

243575

30

Cotter Ring

260608

31

Whiz Nut

253058

32

GR 8 Hex Bolt

243458

33

M1 5 Links Chain

820331

34

Right Belt Shield - M1 72

723330

35

Left Belt Shield - M1 72

723331

36

Roller Mount

755071

37

Radius Arm Assembly

604675

38

Rod End

265665

39

Nut

254493

40

Flange Whiz Bolt

253203

41

M1 Deck Belt Guide

644086

42

Nut

254450

43

Idler Adjustment J Bolt

730391

44

Extension Spring

283848

45

Speeed Nut

254448

46

Vac Housing Pivot Mount

643632

47

Carriage Bolt

247130

48

25" Contour

320252

-

25" Extreme Hi - Lift Blade

320254

-

25" Hi-Low Mulch

320255

-

25" Hi-Lift Notch

320253

-

25" Medium Lift

320250

49

right Anti-Scalp Roller Mount

644584

50

left Anti-Scalp Roller Mount

643695

51

Speed Nut

254431

52

Carriage Bolt

247253

53

Nylon Bearing

422520

54

Oilite Bearing

121756

55

Washer

257062

56

Discharge Flex Shield Assembly

604317

57

Discharge Flex Shield

422042

58

Discharge Flex Shield Mount

644570

58

Torsion Spring

284406

59

Discharge Flex Shield Pin

780650

61

M1 72 Right Mulch Plate

644612

62

M1 72 Left Mulch Plate

644613

63

Mulch End Cap

644058

64

Hex Bolt

243810

65

Lock Nut

253970

66

Roller Spacer

775068

67

Carriage Bolt

247135

68

Bolt Whiz Hex Flange

253193

69

Idler Arm Stabilizer Cap

423670

70

Foot Rest Ext Tread

420904

71

Aux Front Shroud - 72 Deck

724590

72

Bolt Whiz Truss

253176
