Genuine OEM Grasshopper Lawn Mower Parts

Genuine OEM Grasshopper® Mower Parts Diagrams

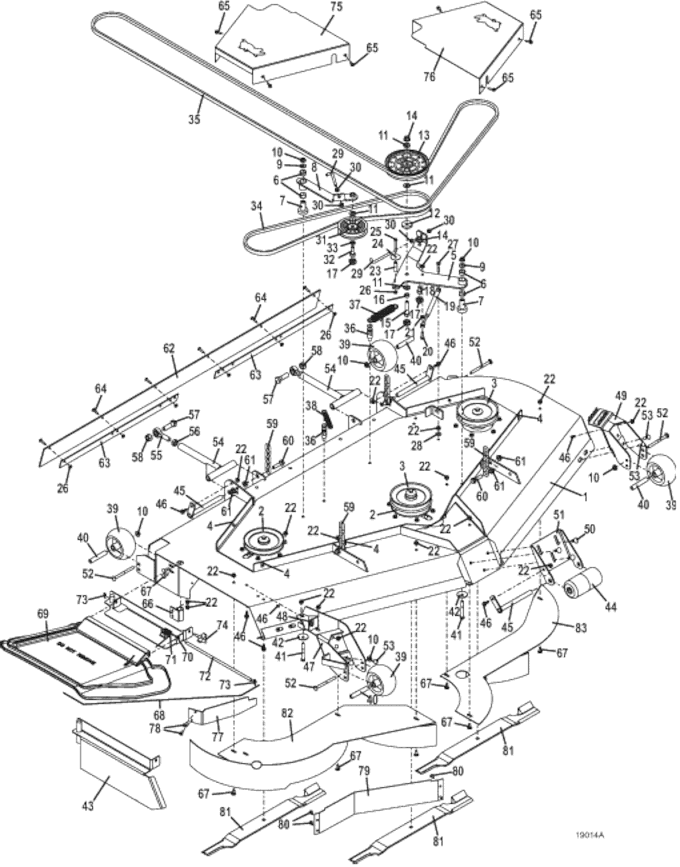

337G5 • 72 Inch Deck Assembly

2020

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

Deck Weldment - M172/07

644161

2

Sheave

415894

3

Sheave

414745

4

Speed Nut

254431

5

Idler Arm Assembly - 61/72" Deck

824424

6

Oilite Bearing

121756

7

Pedestal Bearing

121650

8

Right Idler Arm Assembly

824422

9

Washer

257040

10

Whiz Nut

253043

11

Washer

257062

12

Washer

257160

13

Idler

393250

14

Flange Spiral Loc Nut

253067

15

Hex Bolt

243585

16

Actuator Stop Spacer

902282

17

Stabilizer Cap - Idler Arm

423670

18

Hex Bolt

243551

19

Damper

285040

20

Hex Bolt

243205

21

Washer

257032

22

Whiz Nut

253035

23

Guide Tube

784051

24

Washer

257024

25

Hex Bolt

243045

26

Whiz Nut

253025

27

Hex Bolt

243215

28

Washer

257030

29

"J" Bolt - Idler Adjustment

730391

30

Nut

254450

31

Idler

393226

32

Hex Bolt

243565

33

Lock Washer

257432

34

Belt

382067

35

Belt

382102

36

Deck Spring Anchor

881926

37

Extension Spring

283848

38

Extension Spring w/Swivel

283820

39

Wheel - Anti-Scalp Center Hub

484230

40

Tube - Bearing

942137

41

Hex Bolt

243365

42

Cupped Washer

257041

43

End Cap

754206

44

Center Roller - 2 Piece Assembly

603725

45

Lock Pin - Roller

644512

46

Flange Whiz Hex Bolt

253192

47

Right Anti-Scalp Roller Mount

645575

48

Speed Nut

254448

49

Left Anti-Scalp Roller Mount

645589

50

Carriage Bolt

247253

51

Roller Mount

755071

52

Carriage Bolt

247310

53

Carriage Bolt

247135

54

Radius Arm Assembly

604667

55

Rod End

265665

56

Nut

254493

57

Hex Bolt

243810

58

Lock Nut

253970

59

M1 5 Links Chain

820331

60

Grade 8 Hex Bolt

243458

61

Whiz Nut

253058

62

M1 72 Deck Flap

424206

63

Deflector Strap

774337

64

Bolt

253181

65

Hex Whiz Bolt

253175

66

Pivot Vac Housing Mount

643632

67

Carriage Bolt

247130

68

Flex Discharge Shield Assembly

604317

69

Flex Discharge Shield

422042

70

Discharge Shield Mount

644570

71

Torsion Spring

284406

72

Pin - Flex Discharge Shield

780650

73

Cotter Ring

260608

74

3 Prong HD Deck Stud

252821

75

Right Belt Shield

723330

-

Decal - Grasshopper Emblem - Sm

163289

76

Left Belt Shield

723331

-

Decal - Grasshopper Emblem - Sm

163289

77

Deflector Discharge Shroud

729703

78

Truss Whiz Bolt

253177

79

Auxiliary Front Shroud - 72" Deck

724590

80

Truss Whiz Bolt

253176

81

25" High Lift Notch Blade

320253

-

25" Medium Lift Blade

320250

-

25" Contour Blade

320252

-

25" Extreme Hi-Lift Blade

320254

-

25" Hi-Low Mulching Blade

320255

82

Right Mulch Plate

644612

83

Left Mulch Plate

644613
