Genuine OEM Grasshopper® Mower Parts Diagrams

400D 1.3L • Electrical Wiring

2018

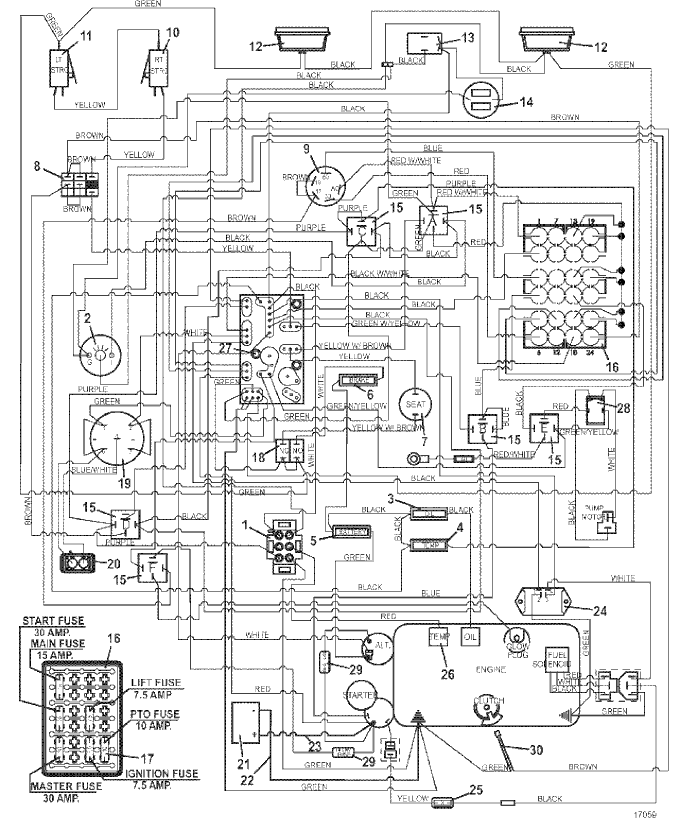

Electrical Wiring Assembly

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

Electric Zoned Temperature Gauge

141165

2

Voltmeter Gauge

141203

-

Light Bulb

182007

3

Oil Indicator Light

182327

4

Temperature Indicator Light

182328

5

Battery Indicator Light

182325

6

Brake Indicator Light

182326

7

Twist-in Seat Switch

183871

8

Push / Pull Switch

183925

9

Kubota Sealed Keyed Switch

183827

-

Double Notch Kubota Keyed Ignition

101106

10

Lever Switch

183860

-

Right Steering Switch Mount

720160

11

Lever Switch

183860

-

left Steering Switch Mount

720161

12

LED Flood Worklamp

182261

13

Rocker Switch

184179

14

USB Charging Receptacle

141625

-

USB Receptacle Cap

141626

-

USB Receptacle Plug

141627

15

12V DC Relay with Diode

184266

16

Fuse Block

181725

-

Fuse ID Front Mount Decal

162341

-

Fuse Block Cover

181726

-

Cable Seal

184985

-

Cavity Plug

184986

-

Hex Bolt

270821

17

Fuse 30A

181456

-

Fuse 7.5A

181451

-

Fuse 10A

181452

-

Fuse 15A

181453

18

Brake Interlock Switch

183894

19

Console Mount Fuel Level Guage

141122

20

2 Terminal Connector

184907

-

Fuel Sender

141235

21

12 volt Side Post Wet Battery

180130

-

12 volt Side Post Dry Battery

180131

-

Hex Bolt

243309

22

42" Red Battery Cable

180340

-

Red Alternator Boot Terminal

425215

-

Battery Boot Terminal

425219

-

Battery Boot

425223

23

Black 20" Battery Cable

180295

24

Interlock Module Switch

184220

25

Inline Auto Fuse Holder

181735

-

30 amp Auto ATC Fuse

181470

26

Temperature Sender

141224

27

PC Board Support Spacer

423690

28

Toggle Switch

184084

29

Inline Regulator Fuse Holder

604880

-

40 amp Auto ATC Fuse

181475

30

Modified Clutch Pigtail

604431

31

400D Wiring Assembly

605932

32

Kubota M1 Console Decal

161119

33

Cutting Height Decal 400D 1.3L

162193
