Genuine OEM Grasshopper Lawn Mower Parts

Genuine OEM Grasshopper® Mower Parts Diagrams

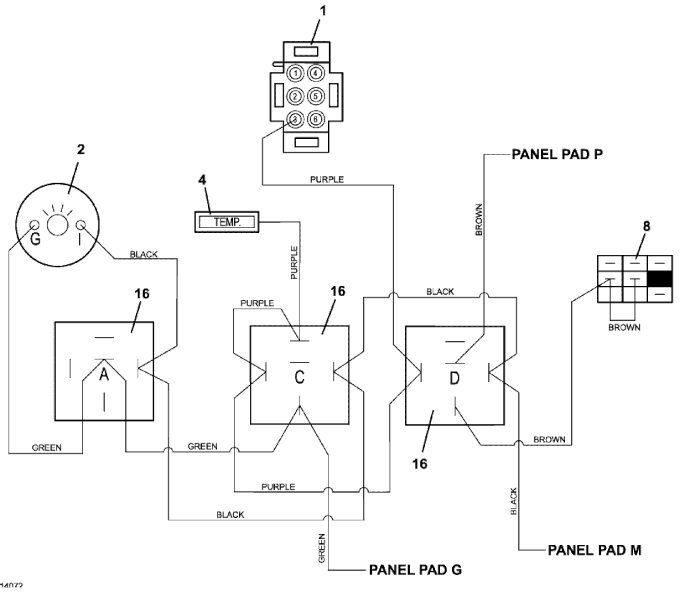

400D 1.3L • Wiring Diagram High Temp

2018

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

Electric Zoned Temperature Guage

141165

2

Voltmeter Guage

141203

4

Temperature Indicator Light

182328

8

Push/Pull Switch (PTO)

183925

16

12V DC Relay with Diode

184266

Return to 400D Index Return to Top
