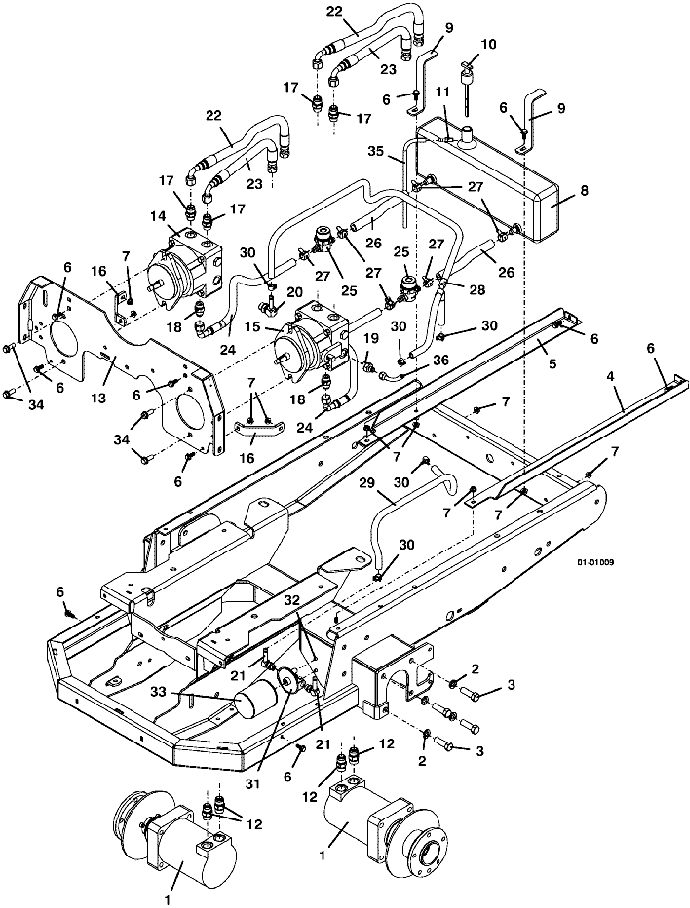

428D • Reservoir and Hose Assembly

2001

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

Wheel Motor with Hub 325 / 400

603610

2

Lock Washer

257442

3

Hex Bolt .562-18 x 1.75 GR 5

243770

4

400 Tank Rail - right

754092

5

400 Tank Rail - left

754093

6

Hex Flange Whiz Bolt .312-18 x .75

253192

7

Whiz Nut

253035

8

Oil Reservoir Assembly - M1 325 / 400

603606

-

Barbed Fitting - 90 degree

363837

-

Fuel Tube Bushing

101875

-

Adapter

360058

-

Reservoir Bushing

101880

9

Oil Tank Strap

732557

10

Oil Reservoir Dipstick - M1

100728

11

Straight Barbed Fitting

363826

12

Adapter Fitting

360069

-

O Ring

126537

13

Pump Plate - 325 / 400

644633

14

Hydro Pump - left

391452

15

Hydro Pump - right

391453

16

Pump Plate Rein Strap

732882

17

Adapter Fitting

360064

-

O Ring

126535

18

Steel O Ring Boss Fitting

363832

-

O Ring

126535

19

Flare O-Ring Adapter

360080

20

Adapter

360062

21

Adapter

360056

22

Hose Assembly

424368

23

Hose Assembly

424366

24

Hose Assembly

424321

25

In-Line Strainer

366552

26

Hydraulic Hose

821796

27

Spring Hose Clamp

280265

28

Hose Assembly

424315

29

Hydraulic Hose

821787

30

.375 Spring Hose Clamp

280263

31

Filter Base - M1 Series

101024

32

Hex Whiz Bolt .250-20 x .500

253173

33

High-Efficiency Transaxle Oil Filter

100855

34

Hex Bolt .500-13 x 1.500

243570

35

Clear Vent Hose

821724

36

Fitting

363846
