Genuine OEM Grasshopper Lawn Mower Parts

Genuine OEM Grasshopper® Mower Parts Diagrams

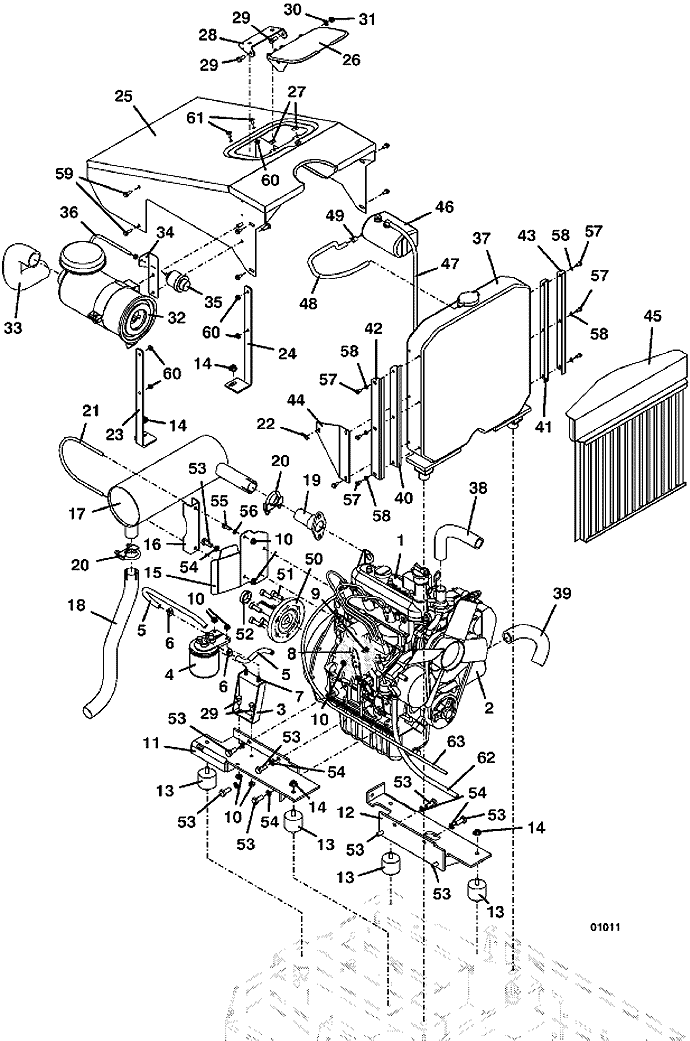

428D • Engine Assembly

2004

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

Kubota Diesel Engine

100181

2

Kubota Oil Filter

100805

3

900 Fuel Filter Mount

644220

4

Kubota Fuel Filter

101004

5

Fuel Line Hose

821716

6

Spring Hose Clamp

280261

7

Hex Flange Whiz Bolt

253192

8

928 Linkage Extension

723063

9

Hex Bolt

243185

10

Whiz Nut

253035

11

400/900 right Engine Mount

643028

12

400/900 left Engine Mount

643029

13

Vibration Isolator

424078

14

Whiz Nut .375-16

253043

15

Muffler Bracket Mount

754110

16

Muffler Bracket

754098

17

Muffler

101234

18

400 Series Exhaust Pipe

821385

19

Exhaust Flange

644237

20

Exhaust Clamp

101356

21

U-Bolt

321250

22

Conduit Clip

180635

23

400 right Hood Mount

726098

24

400 left Hood Mount

726099

25

928 Hood

643481

26

928 Hood Door

643967

27

Rubber Bumper

424029

28

928 Hood Bracket

724059

29

Hex Bolt

243195

30

Spring Washer

284312

31

Nylon Insert Nut

253450

32

Kubota Air Filter

100939

33

Breather Hose

424530

34

Spring Hose Clamp

280255

35

Filter Minder Gauge with Mount

141012

36

Filter Minder Hose

821695

-

Brass Bulkhead Fitting

360090

37

Kubota Radiator

101615

38

Upper Radiator Hose

101056

39

Lower Radiator Hose

101057

40

right Radiator Grille Mount

722114

41

left Radiator Grille Mount

722115

42

Outer right Grille Support

722058

43

Outer left Grille Support

722059

44

Throttle Cable Clamp

723134

45

400/900 Grille

644667

46

Expansion Tank

422012

47

Clear Vent Hose

821748

48

Hose

821749

49

Spring Hose Clamp

280260

50

Clutch Stub Shaft

824641

51

M10 Socket HD Screw

270085

52

Spacer

902584

53

Hex Bolt

271120

54

Lock Washer

275580

55

8M Hex HD

271020

56

Lock Washer

257402

57

Hex Bolt

270820

58

Lock Washer

257392

59

Truss Whiz Bolt

253177

60

Whiz Nut

253025

61

Truss Whiz Bolt

253176

62

Fuel Line Hose

821718

63

Fuel Line Return Hose

821743

64

#8 Screw

252043
