Genuine OEM Grasshopper Lawn Mower Parts

Genuine OEM Grasshopper® Mower Parts Diagrams

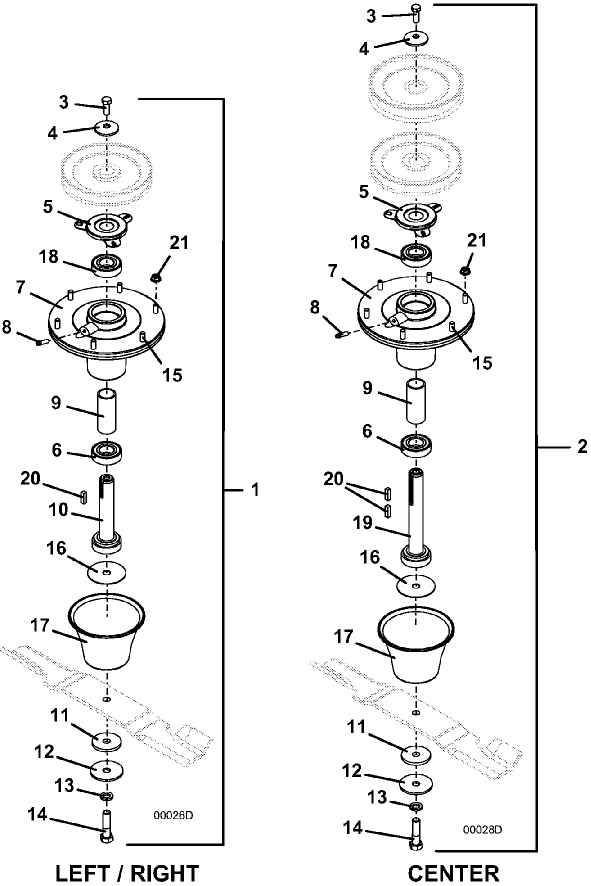

428D • Blade Spindle Assembly M161

2006

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

Spindle Assembly, left & right (includes items 3-18)

623763

2

Spindle Assembly, center (includes items 3-9 & 11-19)

623780

3

Hex Bolt

243331

4

Cupped Washer

257041

5

Bearing Shield

721167

6

Ball Bearing 25mm

110082

7

Spindle Housing Assembly with Studs

604421

8

Grease Fitting 1/4-28 x 1.125

280745

9

Deep Spindle Bearing Spacer

903643

10

Spindle Shaft Assembly

604775

11

Fiber Washer

421200

12

Washer

257061

13

Lock Washer

257432

14

Hex Bolt .500-20 x 2

243581

15

Stud Bolt .312-18 x 1.25

247141

16

Washer

772061

17

Deflector Cone

423680

18

25mm 2 Seal Metal Ball Bearing

110080

19

Spindle Shaft Assembly

604773

20

Square Key .250 x .875

281582

21

Whiz Nut

253035
