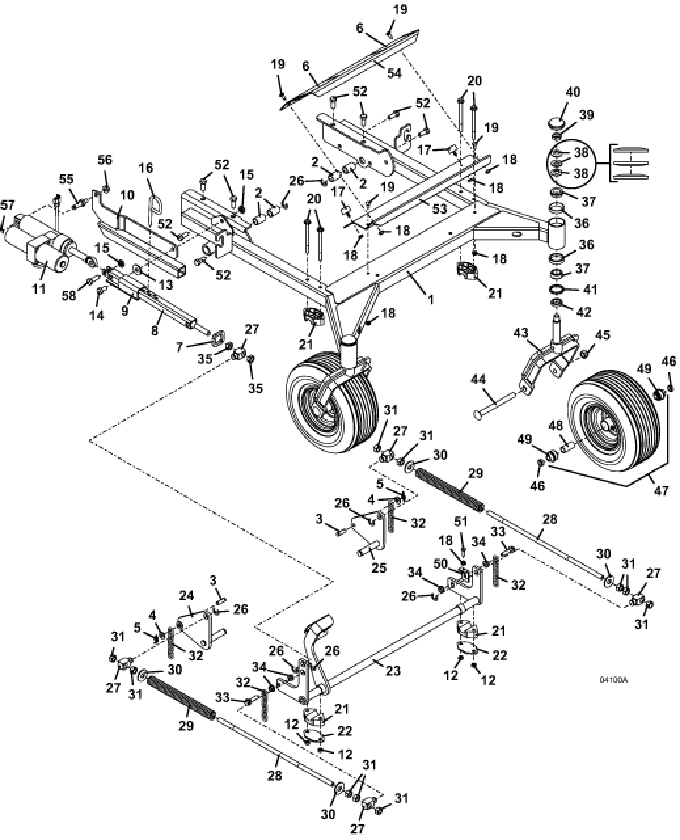

428D • Deck Carrier Assembly 61"

2008

Deck Carrier Assembly, 61 inches

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

M161 Carrier (without footrest)

644138

-

M1 Cutting Height Decal

162187

2

Oilite Bearing

121766

3

Clevis Pin

261405

4

Washer

257051

5

Cotter Ring

260612

6

Tread for External Footrest

420904

7

M1 Height Adjustment Spacer

423696

8

Hydraulic Height Adjustment Kyb Pump Tube Assembly

644809

9

Latch Tube Kyb Guide

644308

10

Hydraulic Adjustment Kyb Cylinder Mount

644284

11

Hydraulic Kyb Pump Assembly

604429

12

Lock Nut

253890

13

Nylon Washer

821516

14

Hex Bolt

243560

15

Nylon Insert Nut

253470

16

Height Adjustment Deck Pin

730434

17

Rubber Bumper

424052

18

Whiz Nut

253035

19

Carriage Bolt

247130

20

Flange Bolt

253215

21

M1 Bearing Block

423643

22

Lift Bearing Plate

774064

23

M1 Deck Lift Lever

644524

24

M1 right Rear Deck Rocker

644707

25

M1 left Rear Deck Rocker

644708

26

External Retainer

263529

27

Spring Rod Shaft Mount

882035

28

Spring Shaft

780661

29

Compression Spring

283395

30

Washer

257080

31

Nut

254490

32

M1 Lift Chain - 5 Links

820331

33

GR 8 Hex Bolt

243458

34

Whiz Nut

253058

35

Nut

254493

36

Bearing Cup

123522

37

Tapered Bearing

122522

38

Spring Washer

257320

39

Top Lock Jam Nylon Nut

254505

40

Domed Dust Cap

481434

41

Seal

125855

42

Spacer

282615

43

Fork & Lock Nut Assembly

604365

44

Carriage Bolt

247726

45

Lock Nut

253970

46

Axle Spacer

902422

47

Wheel Assembly with Bearings

603975

-

Ribbed Tire 13 x 6.50 x 6

482355

-

Wheel without Tire 6 x 4.5

483306

48

Rear Axle Center Spacer

902429

49

DP Wheel Ball Bearing

120048

50

Adjusting Strap

732586

51

Hex Bolt

243205

52

Hex Bolt

243565

-

Flange Spiral Lock Nut

253067

53

M1 Foot Rest Extension

774155

54

300/400 Foot Rest Extension

724579

55

Kyb Cylinder Mount Pin

887115

56

Flange Nut

253065

57

External Retainer

263500

58

Hex Bolt

243570
