430D • Tractor Assembly

2012

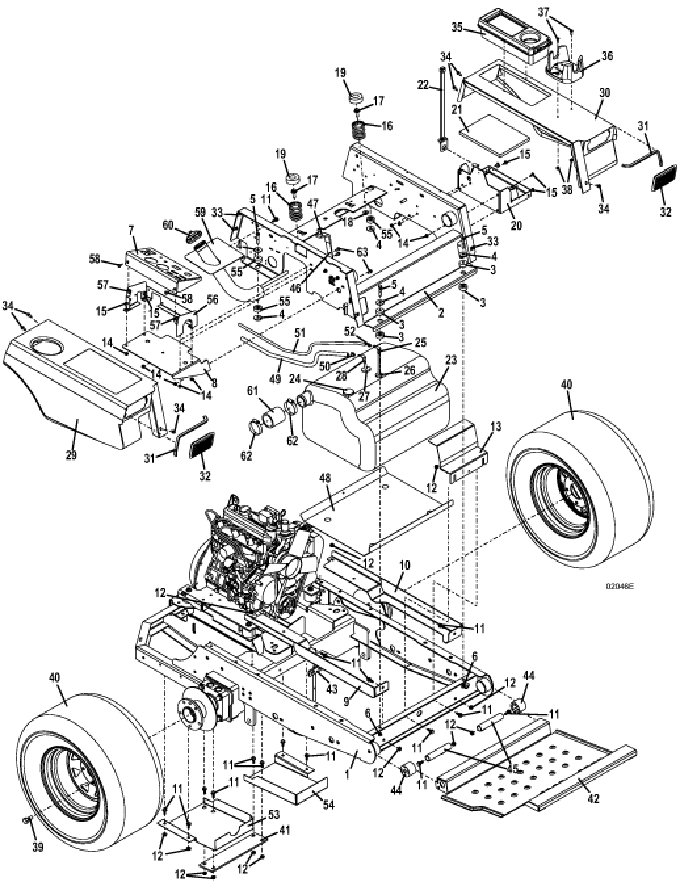

Tractor Assembly

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

400M1 Front Port Frame

644283

2

300/400 Upper Frame

644434

3

Step Bushing

257037

4

Washer

774020

5

Hex Bolt

243220

6

Nylon Insert Nut

253450

7

Console with Decal for Liquid Cooled Diesel models

693109

8

M1 Console Mount

645140

9

300/400 right Tank Rail

645802

10

300/400 left Tank Rail

645803

11

Hex Flange Whiz Bolt

253192

12

Whiz Nut

253035

13

300/400 Front Tank Bracket

723042

14

Whiz Nut

253025

15

Truss Whiz Bolt

253176

16

Compression Spring

283516

17

Whiz Flange Bolt

253203

18

Whiz Nut

253043

19

Seat Spring Cap

422127

20

Battery Box with Strap

644108

21

Battery Tray Pad

427275

22

Battery Hold-down Strap

604785

23

M1 Diesel Tank Assembly

605800

24

In-Tank Fuel Gauge

141142

-

Grommet

424275

25

Fuel Tube

363929

26

Fuel Tube Bushing

101875

27

Diesel Draw Tube Bushing

101876

28

Fuel Tube

363923

29

300/400 right Fender with Decal

693222

30

300/400 left Fender with Decal

693223

31

Trim

822632

32

Worklamp Hole Plug

422079

33

Speed Nut

254431

34

Hex Whiz Bolt

253175

35

Tool Box

422040

36

Cup Holder

150225

37

Cap Screw

259030

38

Nut

254436

39

Lug Bolt

248565

40

Wheel & Tire 24 x 12 x 12

483965

-

Turf Tire 24 x 12 x 12

482486

-

Bar Tread Tire Only 24 x 12 x 12 AT101

482487

-

Wheel Only 12 x 8.5 x 4.25 (for 61" & 72" Decks)

483440

-

12" Wheel & Bar Tread Tire (right)

483968

-

12" Wheel & Bar Tread Tire (left)

483969

41

Belt Guard Strap

783277

42

M1 On-Frame Foot Rest

644256

43

M1 Deck Belt Guide

645005

44

Seat Isolator

424095

45

Seat Hinge Pin

644618

46

Throttle Assembly

603859

-

Throttle Control Cable Assembly

323675

-

Throttle Lever Stop

722009

-

Heavy Duty Throttle Stop

722736

47

Handle Grip

422150

48

M1 Fuel Tank Shield

722949

49

Fuel Line Hose

821718

50

Spring Hose Clamp

280261

51

430D Fuel Line Return Hose

821744

52

Spring Hose Clamp

280257

53

right Mule Belt Shield

723088

54

left Mule Belt Shield

723089

55

Step Bushing

257038

56

300/400 Console Mount Frame

722933

57

Plastic Retainer Nut

254432

58

Bolt

253180

59

300/400 Fuel Filler

644887

60

Screw-On Diesel Fuel Cap

100211

61

Fuel Tank Filler Hose

422027

62

Screw Type Hose Clamp

280305

63

Hex Whiz Bolt

253173

64

430D Decal Set

605530
