Genuine OEM Grasshopper Lawn Mower Parts

Genuine OEM Grasshopper® Mower Parts Diagrams

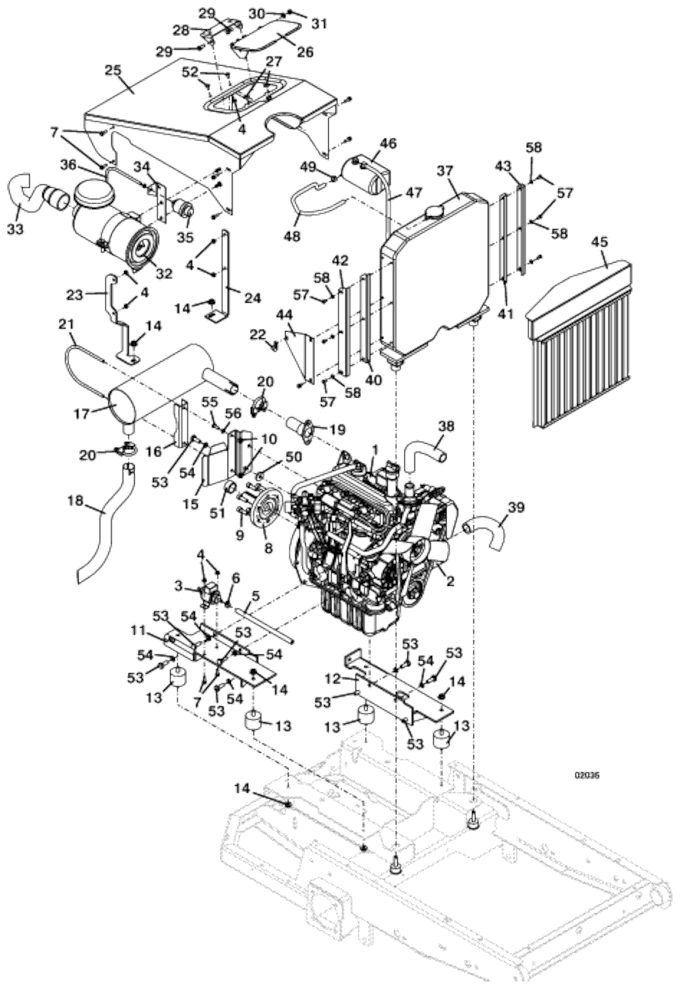

432 • Engine Assembly

2004

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

Kubota Gas Engine

100178

2

Kubota Oil Filter

100805

3

Electric Fuel Pump

101510

4

Whiz Nut

253025

5

Fuel Line Hose

821716

6

Hose Clamp

280270

7

Truss Whiz Bolt

253177

8

Clutch Stub Shaft

824641

9

M10 Socket HD Screw

270085

10

Whiz Nut

253035

11

928 Engine Mount - right

643028

12

928 Engine Mount - left

643029

13

Vibration Isolator

424078

14

Whiz Nut .375-16

253043

15

Muffler Bracket Mount

754110

16

Muffler Bracket

754098

17

Muffler

101234

18

Exhaust Pipe 400 Series

821385

19

Exhaust Flange W/A

644237

20

Exhaust Clamp

101356

21

U-Bolt

321250

22

Loom Clip

180605

23

432 Right Hood Mount

726102

24

400 Left Hood Mount

726099

25

432/932 Hood

644327

26

928 Hood Door

643967

27

Rubber Bumper

424029

28

928 Hood Bracket

724059

29

Hex Bolt .312-18 x .750

243195

30

Spring Washer

284312

31

Nylon Insert Nut .312-18

253450

32

Kubota Air Filter

100939

33

Air Intake Hose

424522

34

Filter Minder Bracket

723078

35

Filter Minder Gauge

141011

36

Filter Minder Hose

821695

-

Brass Bulkhead Fitting

360090

37

Kubota Radiator

101615

38

Upper Radiator Hose

101056

39

Lower Radiator Hose

101057

40

right Radiator Grille Mount

722114

41

left Radiator Grille Mount

722115

42

Outer right Grille Support

722058

43

Outer left Grille Support

722059

44

Throttle Cable Clamp

723134

45

400/900 Grille

644667

46

Expansion Tank

422012

47

Clear Vent Hose

821748

48

Hose

821749

49

Spring Hose Clamp

280260

50

Washer

774020

51

Spacer

902586

52

Truss Whiz Bolt

253176

53

Hex Bolt

271120

54

Lock Washer

275580

55

8M Hex HD

271020

56

Lock Washer

257402

57

Hex HD

270820

58

Lock Washer

257392

Return to 432 Index Return to Top
