Genuine OEM Grasshopper Lawn Mower Parts

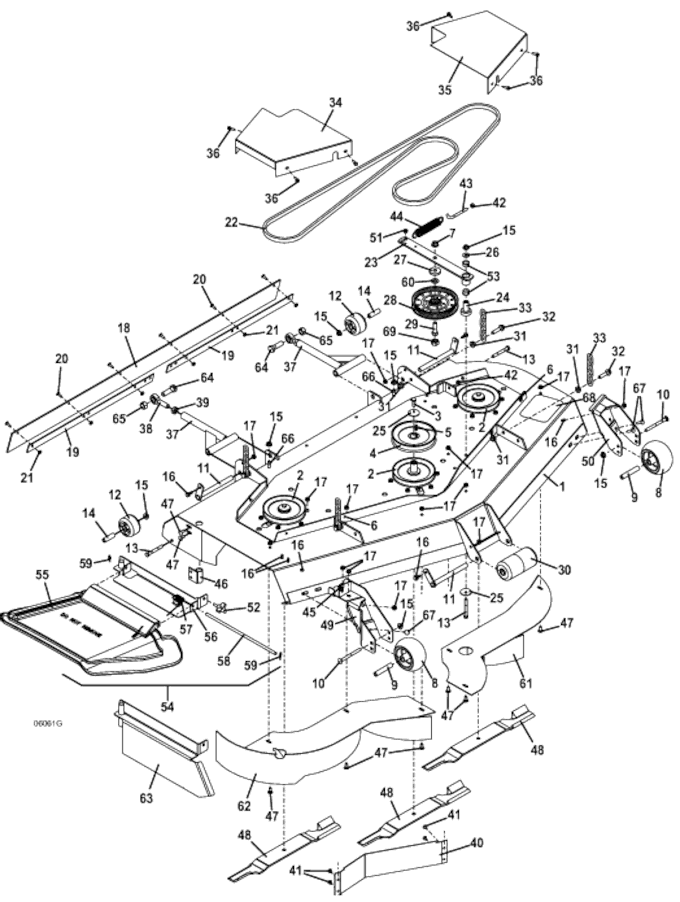

Genuine OEM Grasshopper® Mower Parts Diagrams

432 • Deck Assembly M161

2010-5

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

Deck Weldment - M161/07

644160

2

Sheave

415892

3

Hex Bolt .375-24 x 1

243331

4

Split Sheave

415903

5

Square Key .250 x .875

281582

6

Speed Nut .250-20

254431

7

Flange Spiral Loc Nut

253067

8

Anti-Scalp Center Hub Wheel

484230

9

Bearing Tube

942137

10

Carriage Bolt

247310

11

Roller Lock Pin

644512

12

Roller

426122

13

Hex Bolt

243365

14

Roller Mount Spacer

902284

15

Whiz Nut

253043

16

Hex Flange Whiz Bolt

253192

17

Whiz Nut

253035

18

M1 61 Deck Flap

424204

19

Deflector Strap 220S 61

774337

20

Truss Whiz Bolt

253177

21

Whiz Nut

253025

22

Belt

382085

23

M1 52/61 Idler Arm

824488

24

Pedestal Bearing .750 x 1.5

121650

25

Cupped Washer

257041

26

Washer

257040

27

Retainer Washer .531 x 1.625

883804

28

Idler

393250

29

Hex Bolt

243575

30

2 Piece Center Roller Assembly

603725

31

Whiz Nut

253058

32

Hex Bolt GR 8

243458

33

Chain - 5 Links M1

820331

34

right Belt Shield - Mid 61

722451

35

left Belt Shield - Mid 61

722452

36

Hex Whiz Bolt .25-20 x .75

253175

37

Radius Arm Assembly - 328 F/A

604673

38

Rod End

265665

39

Nut .625-18

254493

40

M1/3461 Auxiliary Front Shroud

724589

41

Truss Whiz Bolt

253176

42

Nut .375-16

254450

43

Idler Adjustment J Bolt

730391

44

Extension Spring

283848

45

Speed Nut

254448

46

Pivot Mount

643632

47

Carriage Bolt

247130

48

High Lift Notch Blade - 21"

320245

-

Medium Lift Blade - 21"

320242

-

Contour Blade - 21"

320244

-

Extreme High Lift Blade - 21"

320246

-

Hi-Low Mulch Blade - 21"

320247

-

High Notched Lift Laser Edge Blade - 21"

320318

-

Shredder Blade - 21"

320322

49

3472 Right Ant-Scalp Roller Mount

645576

50

Left Anti-Scalp Roller Mount

645579

51

Nylon Bearing

422520

52

1.25in Deck Stud - 3 Prong HD

252821

53

Oilite Bearing

121756

54

Flex Discharge Shield Assembly

604317

55

Flex Discharge Shield

422042

56

Discharge Shield Mount

644570

57

Torsion Spring

284406

58

Flex Discharge Shield Pin

780650

59

Cotter Ring

260608

60

Washer

257062

61

M1 61 Left Mulch Plate

644610

62

M1 61 Right Mulch Plate

644611

63

3452/61/72 Mulch End Cap

644058

64

Hex Bolt

243810

65

Lock Nut

253970

66

Hex Bolt

243335

-

Washer

257030

67

Carriage Bolt

247135

68

Extension Tread Foot Rest

420904

69

Idler Arm Stabilizer Cap

423670
