Genuine OEM Grasshopper Lawn Mower Parts

Genuine OEM Grasshopper® Mower Parts Diagrams

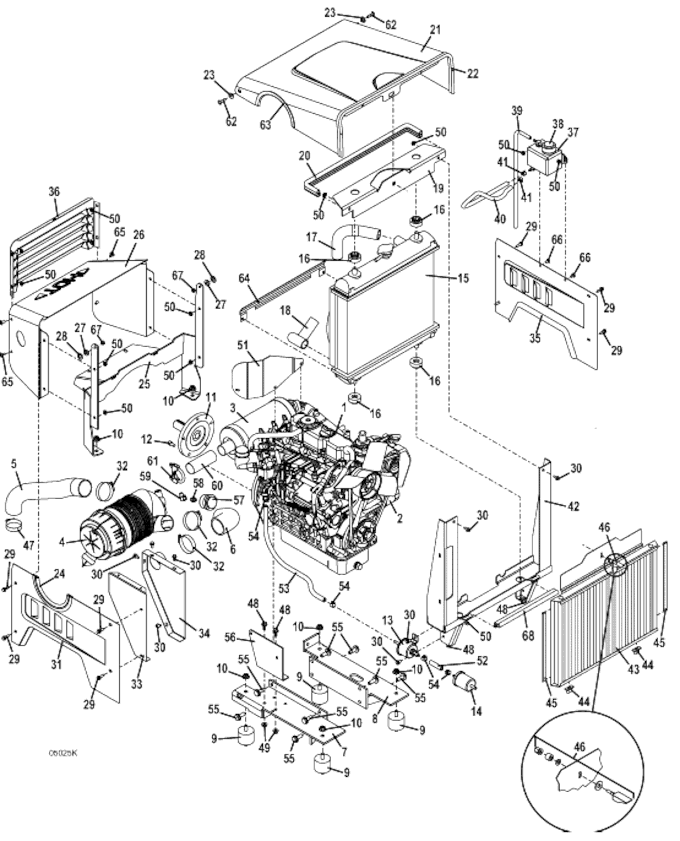

432 • Engine Assembly

2017

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

Kubota Gas Engine

100172

2

Kubota Oil Filter

100800

3

WG972 2011 Muffler

101236

-

Kubota Flange Exhaust Gasket

101040

4

90 Degree Nelson Air Cleaner

100207

-

Dust Ejector

100201

-

HD Outer Air Filter

100936

-

HD Inner Air Filter

100937

5

Breather/Carb Hose

424535

6

Breather Inlet Hose

424520

7

902D Right Engine Mount

644286

8

902D Left Engine Mount

644287

9

Vibration Isolator

424078

10

Whiz Nut

253043

11

Clutch Stub Shaft

824415

12

M8 Socket Head Screw

270075

13

Electric Fuel Pump

101510

14

Kubota Prefilter Fuel Filter

101005

15

Kubota Radiator

101612

16

Radiator Mount - Isolator Bushing

101080

17

Upper Radiator Hose

101058

18

Lower Radiator Hose

101059

19

Radiator Channel Clamp

729327

20

Hood Bulb Seal

822518

21

725D/932 Engine Hood - W/A

644438

22

Front Hood Trim

822639

23

Step Bushing

422508

24

Trim Seal Air Cleaner

822513

25

Hood Support

644854

26

Hood w/Converter Box Panel

722942

27

Hood Hinge Spacer

901324

28

Washer

257063

29

Hex Whiz Bolt

253175

30

Hex Whiz Bolt

253173

31

725DT6 Right Hood Side

722920

32

Screw Type Hose Clamp

280305

33

Air Intake Box Mount

644066

34

Air Intake Box

644059

35

725DT6 Left Hood Side

762521

36

Rear Hood Grill

645270

37

Expansion Tank Assembly

604340

38

Reservoir Cap w/Gasket

421990

-

O-Ring

425550

39

Clear Vent Hose

821748

40

Hose

821749

41

Spring Hose Clamp

280260

42

902 Lower Radiator Mount

644658

43

Grille w/Guard Assembly

604382

44

Rear Belt Shield Isolator

422090

45

Radiator Grille Trim

822636

46

Swell Latch Assembly

604805

47

Screw Type Hose Clamp

280303

48

Flange Whiz Hex Bolt

253192

49

Whiz Nut

253035

50

Whiz Nut

253025

51

Muffler Shield

729782

52

Fuel Hose

821726

53

Fuel Line Hose

821716

54

Spring Hose Clamp

280261

55

Hex Bolt

271121

56

Coil Mount

754224

57

Filter Minder Gauge w/o Mount

141012

58

O-Ring Filter Fitting

363815

59

Ell Street Fitting

363828

60

Exhaust Pipe

942418

61

Exhaust Clamp

101356

62

Bolt

253181

63

Trim

822632

64

Fan Shield

721006

65

Bolt

253180

66

Truss Whiz Bolt

253176

67

Nylon Insert Nut

253440

68

Lower Radiator Seal

822507
