Genuine OEM Grasshopper Lawn Mower Parts

Genuine OEM Grasshopper® Mower Parts Diagrams

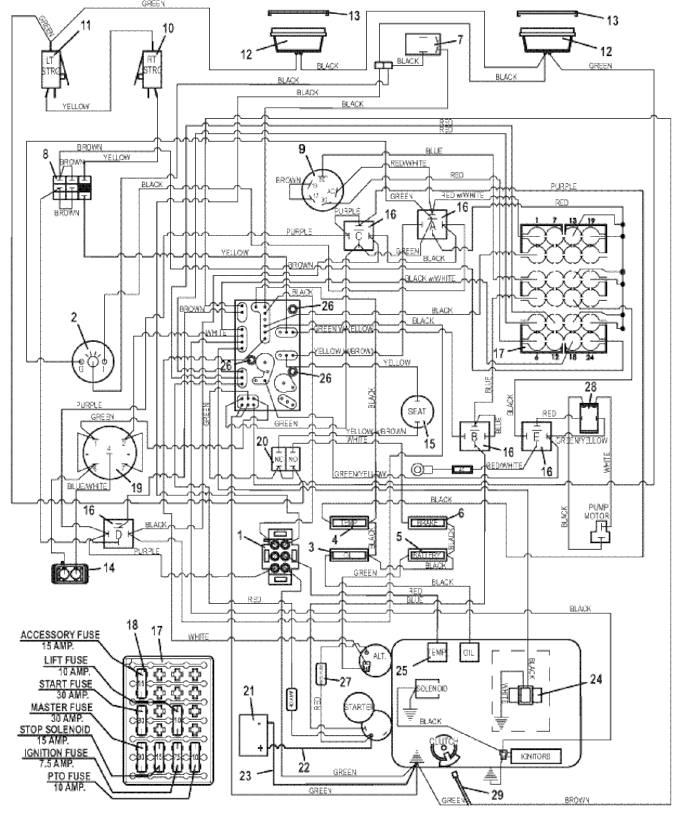

432 • Electrical Wiring

2017

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

Electric Zoned Temperature Gauge

141165

2

Voltmeter Gauge

141203

-

Light Bulb

182007

3

Oil Indicator Light

182327

4

Temperature Indicator Light

182328

5

Battery Indicator Light

182325

6

Brake Indicator Light

182326

7

Light Switch

184179

8

Push / Pull Switch

183925

9

Kubota Sealed Keyed Switch

183827

-

Double Notch Kubota Keyed Ignition

101106

10

Lever Switch

183860

-

right Steering Switch Mount

720160

11

Lever Switch

183860

-

left Steering Switch Mount

720161

12

LED Flood Worklamp

182261

13

Snap-Mount Bezel for Worklamp

182251

14

2 Terminal Connector

184907

-

Fuel Sender

141235

15

Twist-In Seat Switch

183871

16

12VDC Relay w/Diode

184266

17

Fuse Block

181725

-

M1 2017 Kubota Fuse ID Decal

162340

-

Fuse Block Cover

181726

-

Cable Seal

184985

-

Cavity Plug

184986

-

Hex Bolt

270821

18

Fuse 30 Amp

181456

-

Fuse 7.5 Amp

181451

-

Fuse 10 Amp

181452

-

Fuse 15 Amp

181453

19

Fuel Level Gauge - Console Mount

141122

20

Brake Interlock Switch

183894

21

12 volt Side Post Wet Battery

180130

-

12V Sidepost Dry Battery

180131

-

Hex Bolt

243309

-

Battery Box Assembly with Strap

603104

-

Battery Hold Down Strap

604785

22

42" Red Battery Cable

180340

-

Red Alternator Boot Terminal

425215

-

Battery Boot Terminal

425219

-

Battery Boot

425223

23

Black 20" Battery Cable

180295

24

Electric Fuel Pump

101510

25

Temperature Sender

141224

26

PC Board Support Spacer

423690

27

Inline Regulator Fuse Holder

604880

-

40 Amp Auto ATC Fuse

181475

28

Toggle

184084

29

Modified Pigtail Clutch

604431

31

329/432 Wiring Assembly

605924
