Genuine OEM Grasshopper Lawn Mower Parts

Genuine OEM Grasshopper® Mower Parts Diagrams

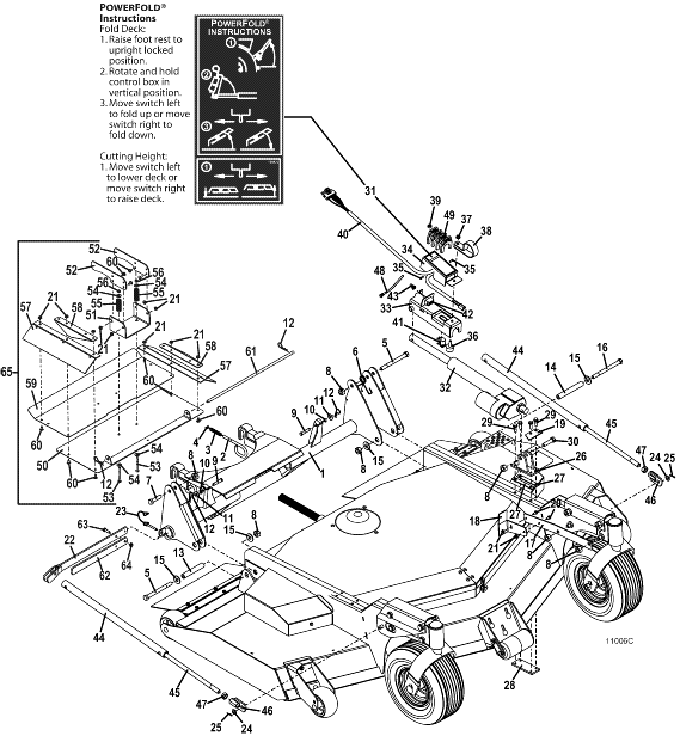

3572R Rear Discharge Front Mount Deck
Lift Arm with Optional Electric Powerfold Actuator

2016

Lift Arm with Powerfold Actuator

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

3572 Lift Arm Assembly

645522

2

Deck Mount Latch Pin

730433

3

Compression Spring

283285

4

External Retainer

263490

5

Hex Bolt

243635

6

Torsion Spring

284423

7

Hex Bolt

243580

8

Lock Nut

253930

9

Clevis Pin

261362

10

Push-On Retainer

262950

11

Washer

257040

12

Hair Pin

260523

13

Right Lift Arm Pivot Tube 3472

902002

14

Left Lift Arm Pivot Tube 3472

902001

15

Washer

257060

16

Hex Bolt

243640

17

3472PF Cut Height Arm

774672

18

3472PF Cut Height Plate

729498

-

Cutting Height Decal

162210

19

3472PF Cut Height Pointer

774673

20

Hex Whiz Bolt

253173

21

Whiz Nut

253025

22

Traction Kit Lever Assembly

604843

-

Offset Traction Kit Tool

643944

23

Linch Pin

261624

24

Washer

257063

25

Cotter Pin

260650

26

34 Electric Lift Actuator Mount

644056

27

Electric Lift Actuator Mount Spacer

900142

28

34 Actuator Threaded Plate

776089

29

Hex Flange Whiz Bolt

253193

30

Hex Bolt

243580

31

Powerfold Pictorial Decal

165430

32

12 volt Actuator

180035

-

Electric Motor

182540

33

Electric Lift Switch Mount

644805

34

Electric Lift Switch Shield

722005

35

Hex Machine Screw

250169

36

Bumper with Stud

424056

37

Whiz Nut

253035

38

Power Fold Height Adjustment Spacer Mount

732315

39

.25 THK Spacer

902297

40

Deck Tilt/Height Adjustment Wiring Assembly

605965

41

Snap Mount Plunger SPST NC Switch

183867

42

Toggle

184084

43

Toggle Switch Boot

425200

44

3472 Lift Linkage Tube

645179

45

3472 Linkage Rod

830010

46

3472 Lift Rod Bracket

645177

47

Nut

254490

48

Releasable Wire Tie

423149

49

Powerfold Height Adj. Spacer

423697

50

3552/61 Discharge Shield

645763

51

35 Series Short Shield Holder

724764

52

Shield Support Arm Plate

774346

53

Hex Bolt

243050

54

Washer

257020

55

Compression Spring

283320

56

Nylon Insert Nut

253440

57

3552/61 Discharge Shield Flap

424170

58

Discharge Flap Support

724972

59

Rear Discharge Shield

722961

60

Truss Whiz bolt

253176

61

Rear Discharge Shield Pin

780425

62

Traction Kit Ext Lever

782979

63

Hex Bolt

243205

64

Nylon Insert Nut

253450

65

Front Mount Rear Discharge Shield Kit

504640
